Vibrating Electromagnetic Filter For Dusts

The vibrating electromagnetic filters FVP are used for the de-ironizing of dry grain materials, sands, clays, frits, fine grinded minerals, etc.

The product that must be de-ironizing,contained in the superior container, flow down into the filter box which contains grids influenced by a magnenetic field created by the coil. The filter box keep the iron-particles .A special cycle of demagnetization periodically cleans the filter box.

The FVP filters are equiped by electrical box.

CHARACTERISTICS:

  • Structure in steel.
  • All parts that are in contact with the product are made in stainless steel AISI 304.
  • Loading happers in steel.
  • The casing filter has a grid in steel zinc.
  • Winding in class H dipped in resins.
  • Supply tension 55 V/110V DC.
  • Protection grade IP 66.
  • Standard paint RAL 5012.
  • Vibrator 280-400V 50-60Hz.

SWITCHBOARD:

  • A handing metalic box in steel.
  • Painted in the colour RAL 7032.
  • Protection grade IP 54.
  • Power supply standard 400V 50Hz.

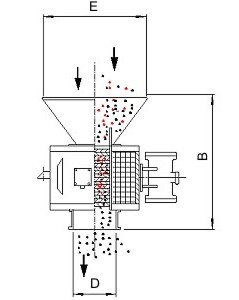

TECHNICAL INFORMATION

Type
Capacity m³/h
Grids Ø e mm
Grids n°
E mm.
D mm.
B mm.
Power W c.c.
Vibrator W
Weight Kg.
FVP15
1,5 ÷ 3
145
10
140
400
450
210
180
100
FVP15P
1,5 ÷ 3
145
10
140
400
450
420
180
150
FVP25
3,5 ÷ 6
245
10
240
450
530
400
420
200
FVP25P
3,5 ÷ 6
245
10
350
450
530
800
420
270
FVP37
8 ÷ 12
365
14
350
725
690
600
490
400
FVP37P
8 ÷ 12
365
14
350
725
690
1000
490
480
FVP50
14 ÷ 18
495
17
480
950
920
1000
960
630

NON BINDING DIMENSIONS
